15 Ft 100A MIG Welding Gun for Hobart Handler 190/210
$70.00
A Practical Replacement MIG Gun for Compatible Hobart Handler Welders
Designed as a replacement MIG welding gun for compatible Hobart Handler machines, this 100A torch combines a 15 ft cable, Hobart-style machine connection and replaceable front-end consumables in one complete gun assembly.
Compatible replacement product — not represented as an OEM Hobart welding gun. Verify the welder model and connector configuration before ordering.
Designed for Compatible Hobart Handler 190, 210 & 210MVP Welders
This replacement MIG gun is designed for compatible Hobart Handler 190, Handler 210 and Handler 210MVP welding machines using the corresponding H100S4-10 / 245926-style torch connection.
Handler 190
Handler 210
Handler 210MVP

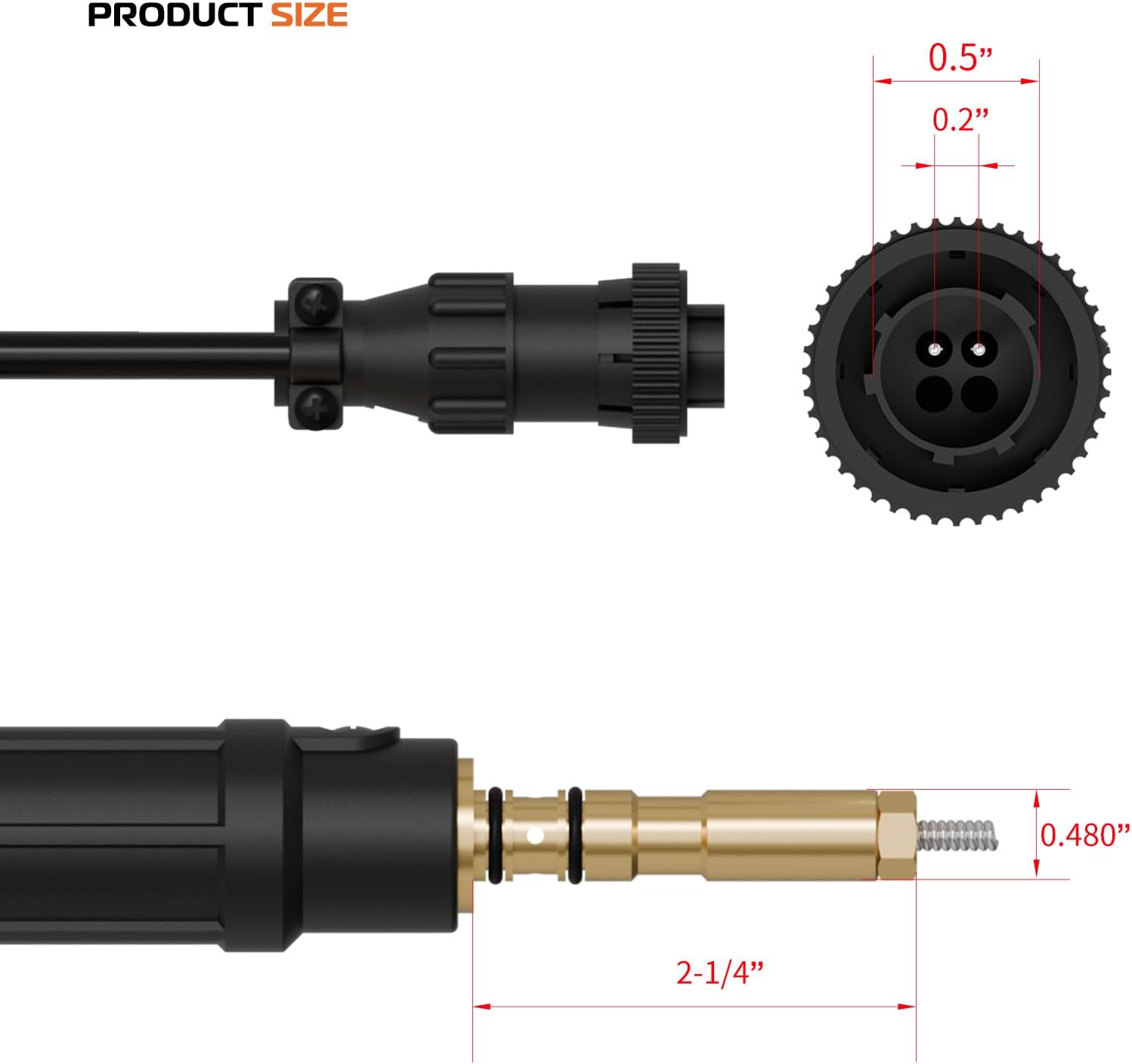

Compare the Machine-Side Connection Before You Buy
Replacement MIG guns can look similar while using different machine-side connections. Compare your existing gun with the connector shape, control plug and dimensions shown below before ordering.
Match your welder model, main connector and separate round 2-pin control plug with the product diagrams. Do not select a replacement gun only by brand name or current rating.
100A Replacement Gun with a 15 ft Cable
The gun is listed at 100A and uses a 15 ft / approximately 4.6 m cable assembly, providing useful working distance between the welder and torch when working around vehicles, benches, equipment and larger workpieces.
The supplied product information lists the gun as 100A but does not provide a duty-cycle rating.

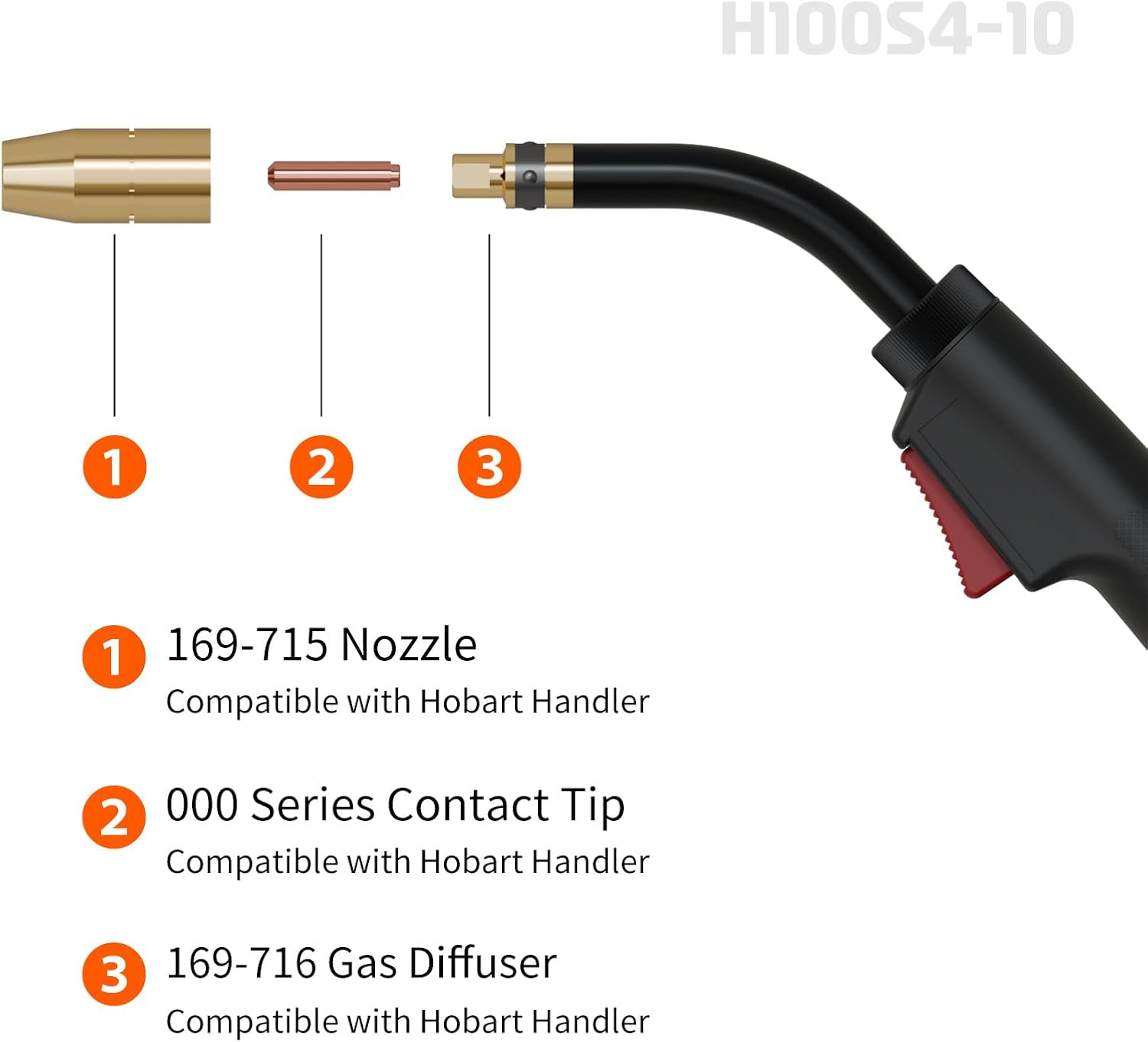

Designed Around Common Hobart-Style Torch Consumables
The torch-end assembly uses replaceable MIG consumables designed around the H100S4-10-style configuration, allowing the nozzle, contact tip and gas diffuser to be serviced individually.
5 × .030″ contact tips + 5 × .035″ contact tips

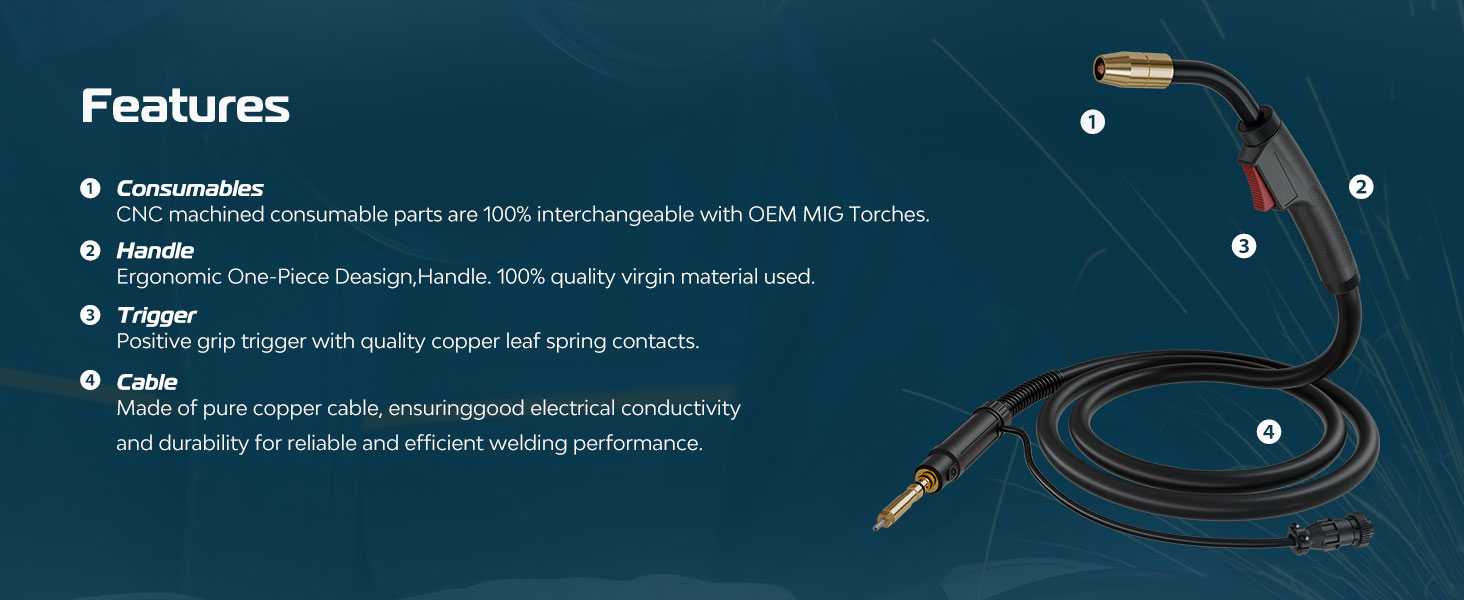

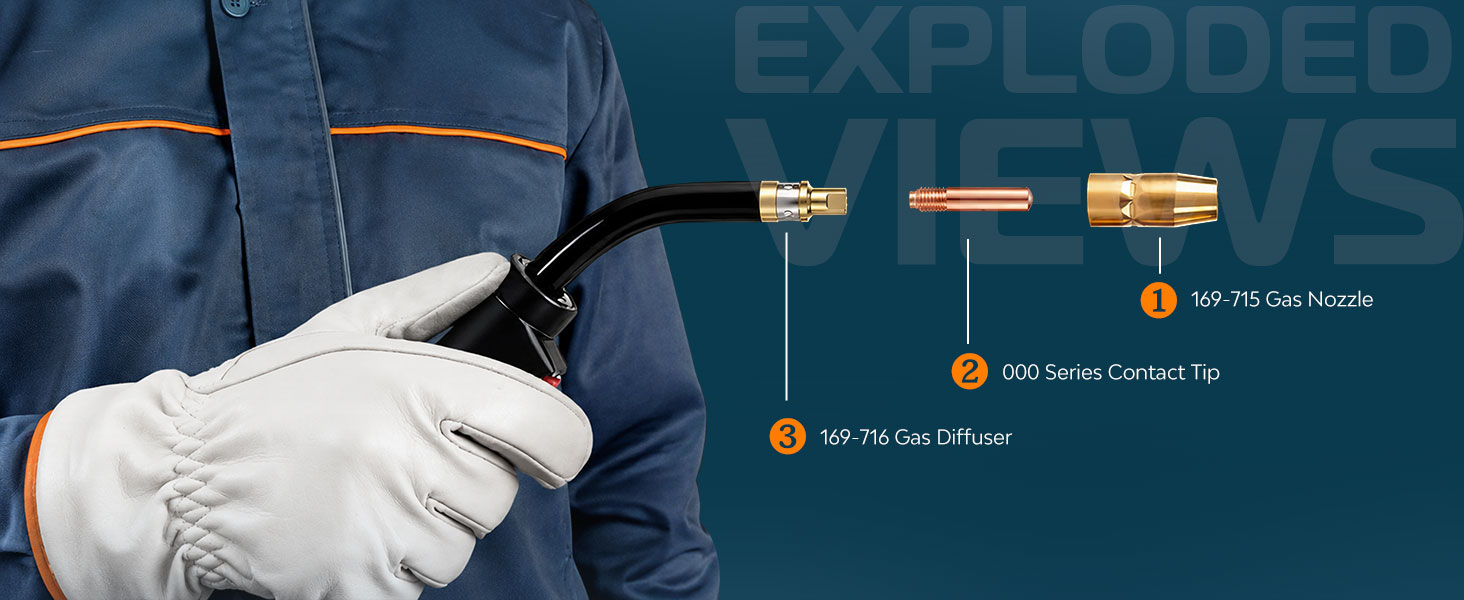

Serviceable Front-End Design
The front of the welding gun uses a conventional replaceable consumable arrangement. Individual components can be removed during routine maintenance or replaced as they wear.
Directs shielding gas around the welding area.
Guides the welding wire and transfers welding current to it.
Distributes shielding gas through the front torch assembly.
Positions the torch head at a practical angle for general MIG welding.

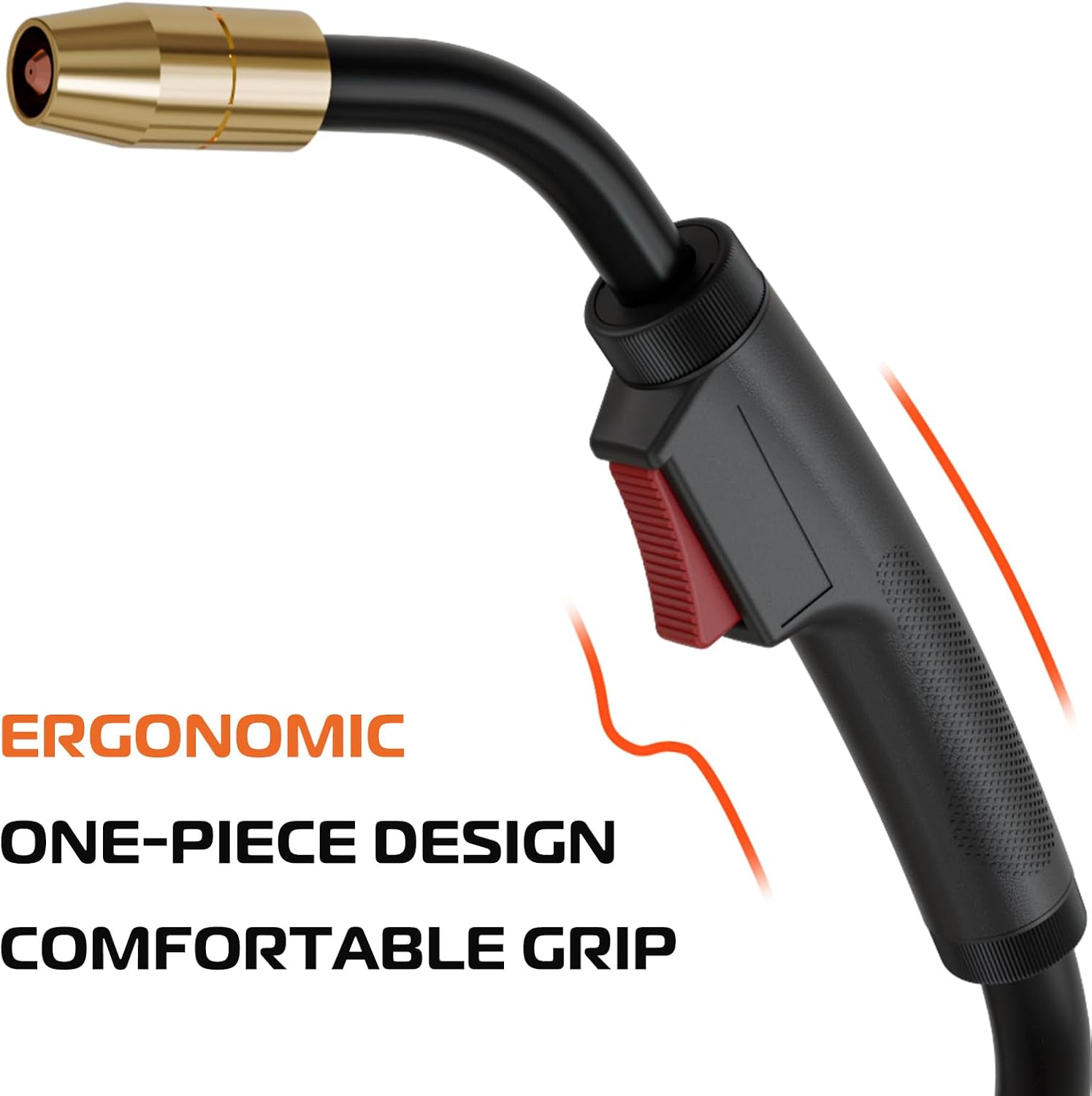

Contoured One-Piece Handle for Routine Welding Work
The welding gun uses a molded one-piece handle with a contoured profile and textured grip surface, designed to provide a secure and practical hand position during routine welding.
Integrated molded grip housing.
Provides added traction during handling.
Prominent red trigger within easy reach.
Copper contact components are shown in the trigger assembly.

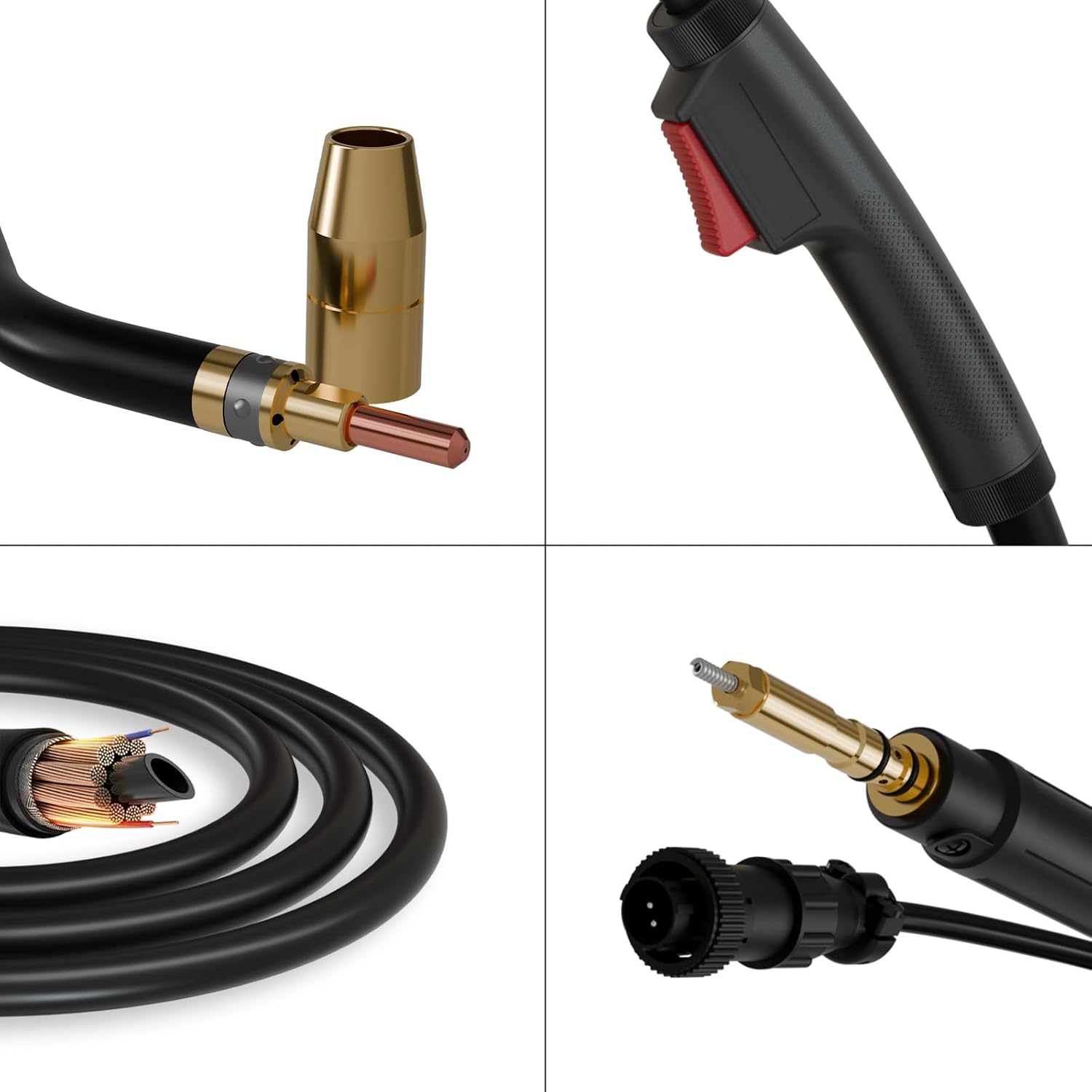

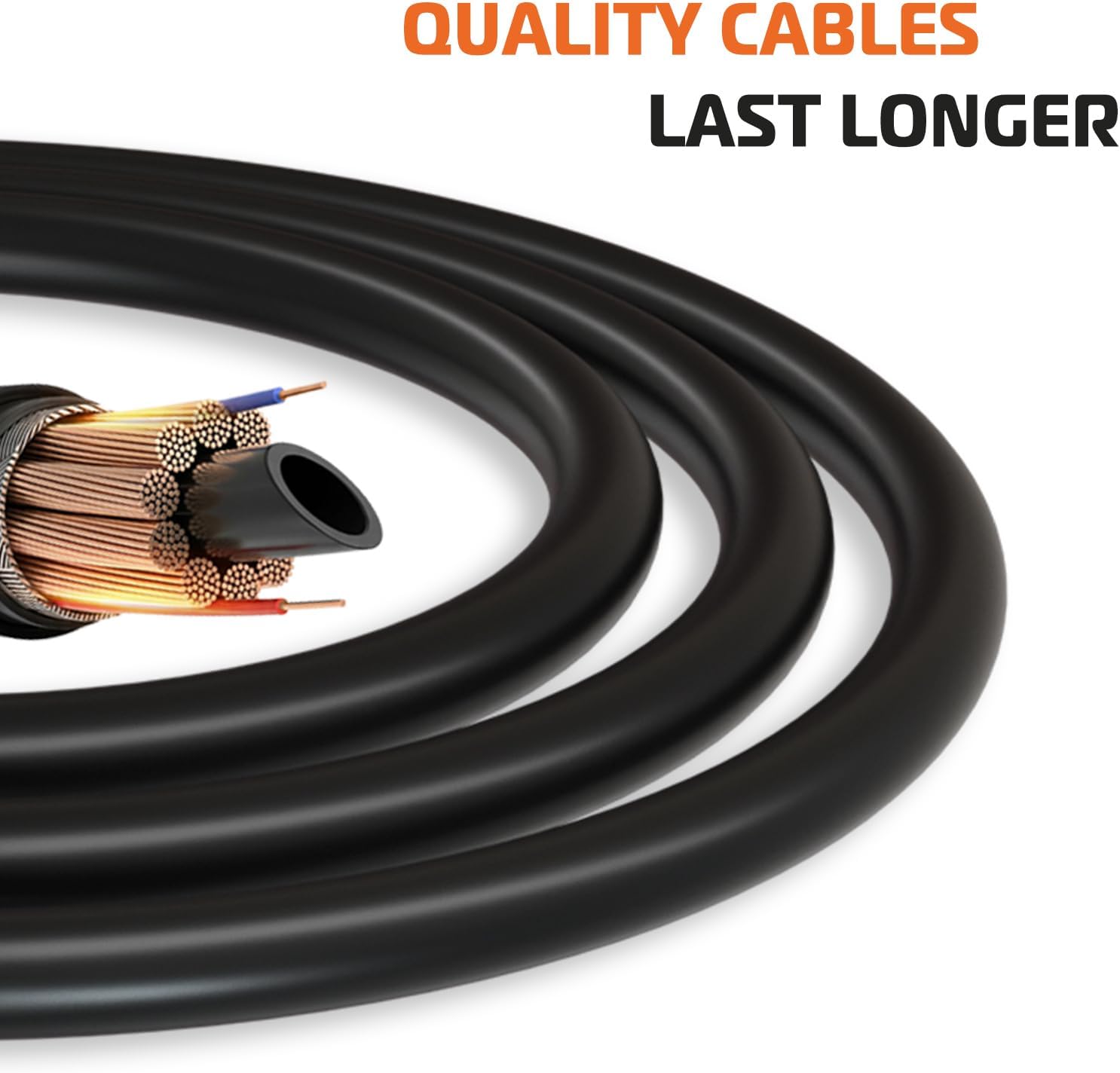

15 ft Cable with Multi-Strand Copper Conductors
Inside the welding-gun cable, the supplied product information shows a multi-strand copper conductor structure designed to carry welding current between the machine and torch while retaining the flexibility needed for normal torch positioning.
Provide the main current-carrying path through the welding-gun cable.
Supports normal movement and positioning around the work area.

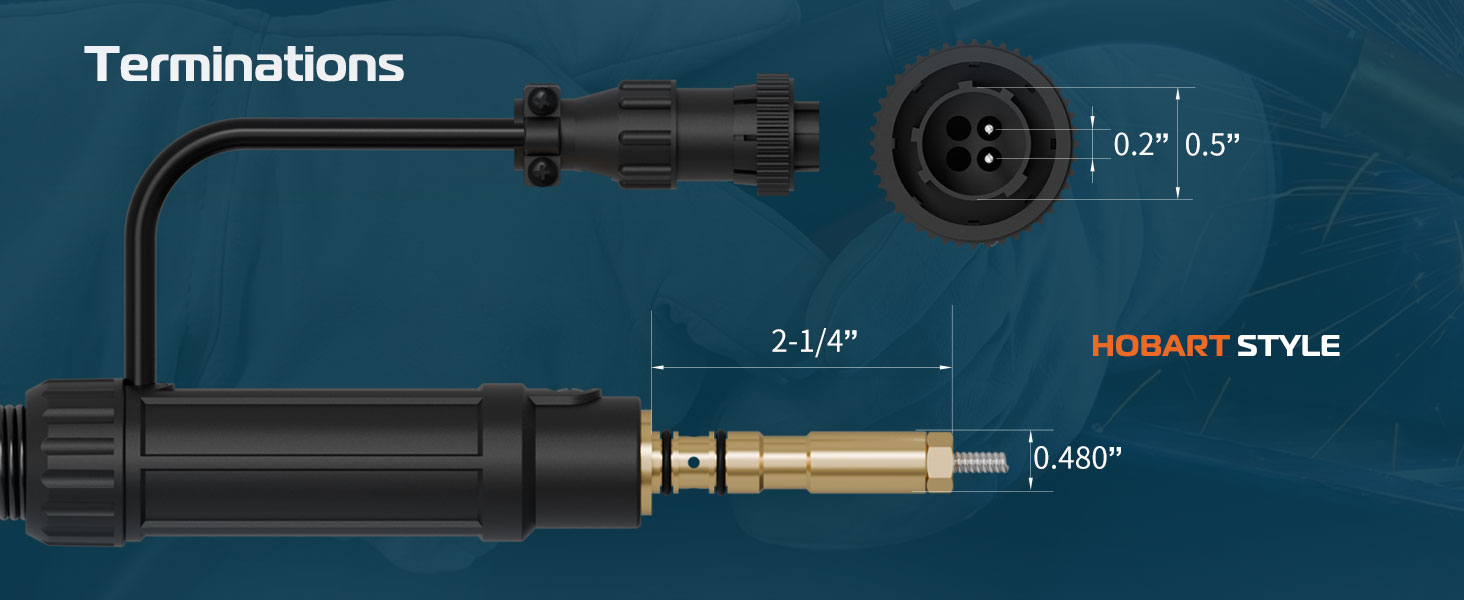

Separate Gun and Trigger Connections for Straightforward Setup
The machine end uses a Hobart-style main connection together with a separate round 2-pin control plug, creating a complete replacement-gun assembly from the machine connection through the 15 ft cable to the torch head.
Hobart-style machine-side connection.
Separate round connector for trigger control.
Nozzle, contact tip and gas diffuser are individually replaceable.
Before installation, switch off and disconnect the welder from power. Compare the existing gun connection and control plug with the product diagrams before replacing the torch.
A Practical Replacement Gun for Garage, Farm & Repair Work
Intended for compatible Hobart Handler welders used in general repair and light fabrication environments where a 15 ft replacement torch provides useful working reach.

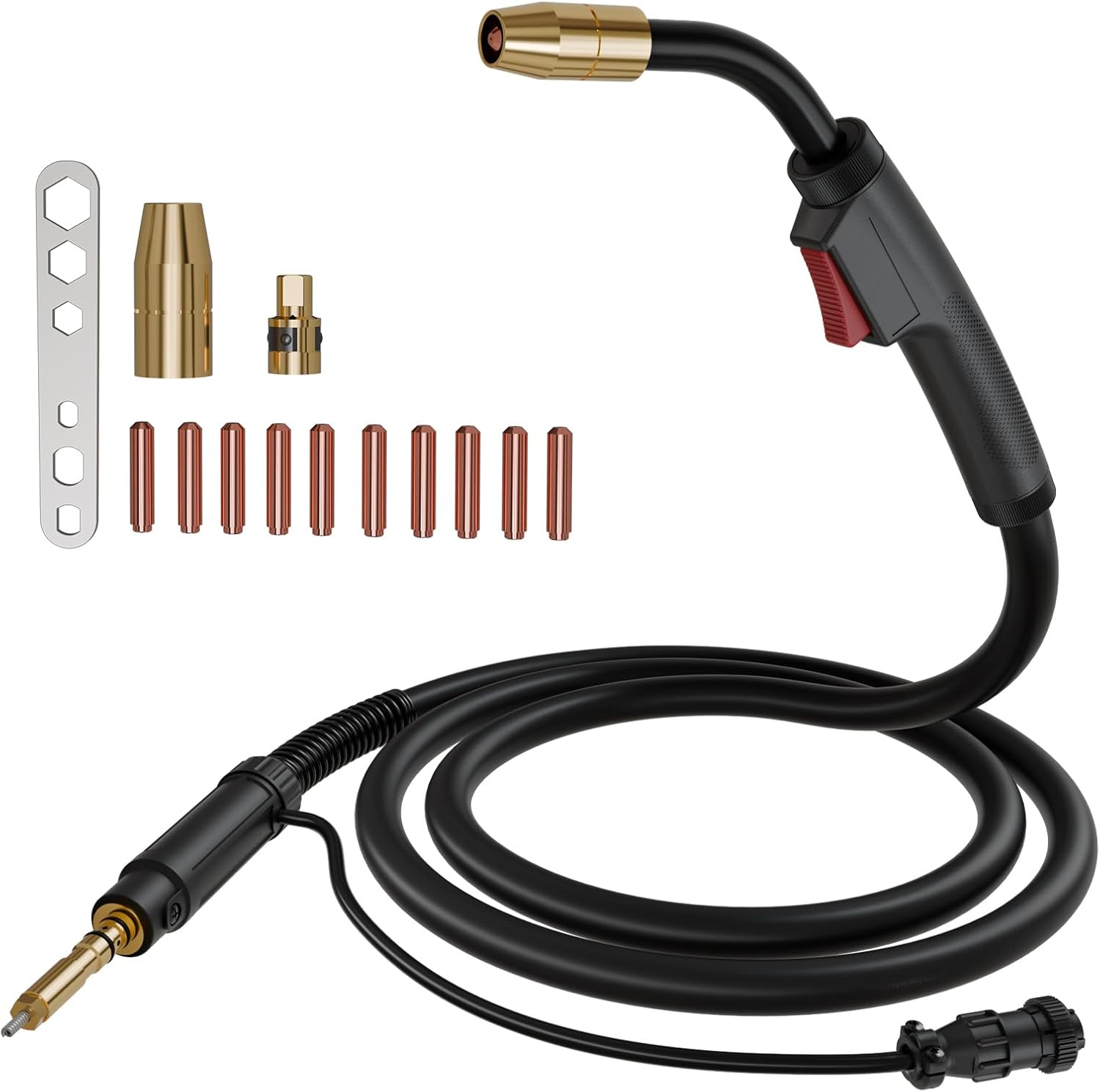

Replacement MIG Gun with Starter Consumables
The package combines the complete 15 ft replacement welding gun with a starter selection of common torch consumables and a wrench.
Check the Specifications Before Ordering
Replacement-gun compatibility depends on both the welder model and the physical connection. Review the specifications and connector diagrams before purchase.
| Product Type | Replacement MIG Welding Gun |
| Listed Current | 100A |
| Cable Length | 15 ft / approx. 4.6 m |
| Compatible Models | Hobart Handler 190 / 210 / 210MVP |
| Replacement Reference | H100S4-10 / 245926 |
| Connection Style | Hobart-style |
| Main Connector Dimension | Approx. 2-1/4 in |
| Terminal Dimension | Approx. 0.480 in |
| Control Plug | Round 2-pin |
| Control Plug Outer Dimension | Approx. 0.5 in |
| Control Plug Pin Dimension Shown | Approx. 0.2 in |
| Gas Nozzle Reference | 169-715 |
| Contact Tip Reference | 000 Series |
| Gas Diffuser Reference | 169-716 |
| Included Contact Tips | 5 × .030″ + 5 × .035″ |
| Listed Item Weight | Approx. 5.57 lb |
Confirm Handler 190, 210 or 210MVP compatibility.
Compare with H100S4-10 / 245926 where available.
Compare connector shape and dimensions with your existing gun.
Verify the same separate round trigger-control connector.
Compare nozzle, contact tip and diffuser references if reusing existing parts.
Send us your welder model, existing gun part number, and clear photos of the machine-side connector and control plug. We can use that information to help compare the connection before you order.
