110V Capacitor Discharge Stud Welder, M3–M10 Stud Welding Machine, 108,000 μF Capacitor Bank, 33–198V Adjustable, 5m Welding Gun
$1,799.00
Fast Stud Welding for Thin-Sheet Metalwork
Designed for fast, repeatable stud attachment, the RSR-2500 uses capacitor-discharge technology to weld M3–M10 studs to compatible metal workpieces. A 108,000 μF capacitor bank, adjustable charging voltage and millisecond welding cycle provide a practical setup for sheet-metal fabrication, equipment assembly, insulation fastening and related stud-welding applications.
Actual welding performance depends on stud size, material combination, workpiece thickness, charging-voltage setting and surface preparation.
Stored Energy. Released in Milliseconds.

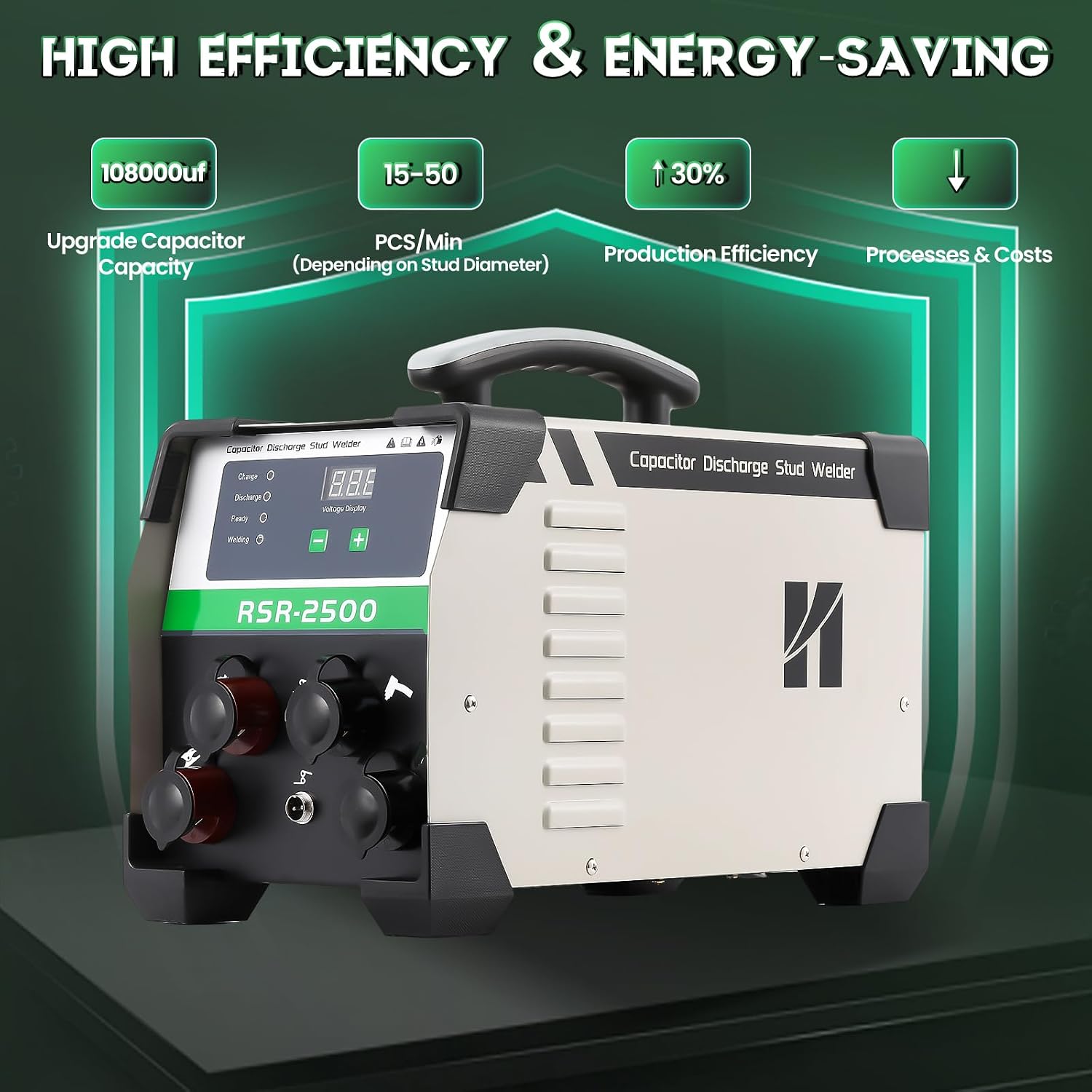

The RSR-2500 stores electrical energy in its 108,000 μF capacitor bank and releases that energy through the welding gun in a short 3–6 millisecond discharge cycle. This concentrated energy transfer creates the stud-to-workpiece weld while limiting the amount of heat introduced into the surrounding sheet metal.
Compared with fastening methods that require drilling, riveting or additional mechanical hardware, capacitor-discharge stud welding can simplify suitable attachment jobs by welding the stud directly to the metal surface.
Stores energy for rapid stud-welding cycles.
Helps limit unnecessary heat input around the attachment point.
Can reduce drilling and additional fastening steps in suitable applications.
Designed for repetitive stud-placement tasks.
One Machine for M3 Through M10 Studs
From smaller M3 fasteners to larger M10 studs, the RSR-2500 covers a broad range of common stud-welding sizes. Charging voltage can be adjusted from 33V to 198V, allowing the operator to adapt the setup to different stud diameters and working conditions.
M4
M5
M6
M8
M10
Stepless adjustment provides flexibility for different stud sizes and compatible material combinations.
The current package includes M3, M4, M5, M6, M8 and M10 collets.
Start with a test weld on scrap material and adjust the charging voltage as needed before beginning production work.
Designed for 0.5–3 mm Metal Workpieces
Capacitor-discharge stud welding is particularly useful where a fast attachment is needed on relatively thin sheet metal. The RSR-2500 is intended for workpieces approximately 0.5–3 mm thick, with each welding cycle completed in roughly 3–6 milliseconds.
Because the energy is released over such a short period, heat is concentrated around the stud attachment point rather than being applied to the workpiece for an extended time. With the correct stud, material combination and voltage setting, this can help reduce distortion, excessive backside marking and burn-through compared with longer-duration welding processes.
Recommended Workpiece Thickness
Typical Welding Cycle
Results vary with material type, sheet thickness, stud diameter, surface condition, contact pressure and machine settings.
Match the Stud to the Workpiece

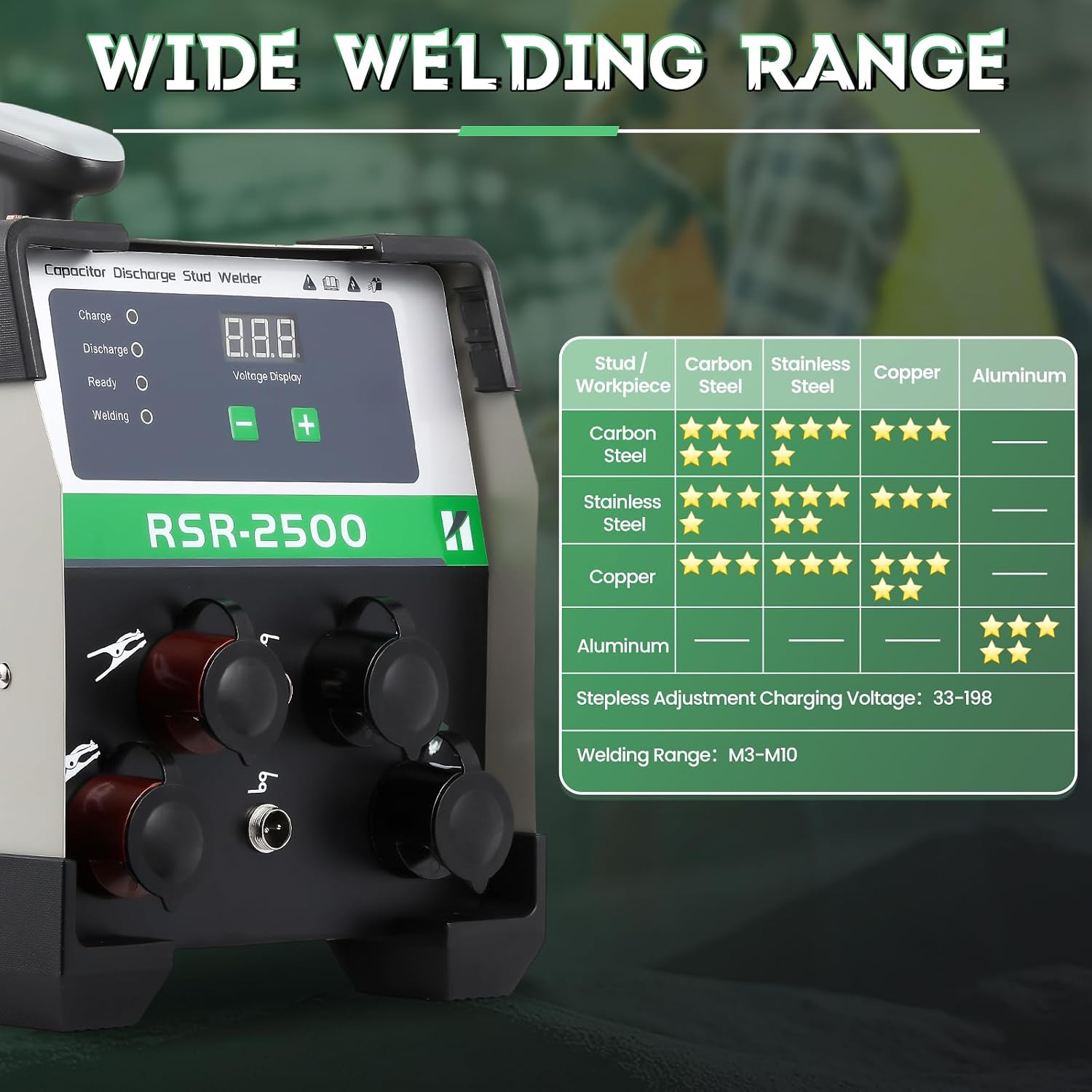

The RSR-2500 is designed for stud-welding applications involving common conductive metals. Welding performance depends on whether the stud material and workpiece material are compatible.
Carbon Steel
Suitable for many general fabrication, enclosure and metal-assembly applications when paired with a compatible stud.
Stainless Steel
Useful for stainless sheet-metal work, equipment panels and compatible corrosion-resistant fabrication applications.
Copper / Brass
Compatible applications are possible, but the stud and workpiece combination should be selected carefully.
Aluminum
Best treated as a dedicated aluminum application using a compatible aluminum stud and aluminum workpiece.

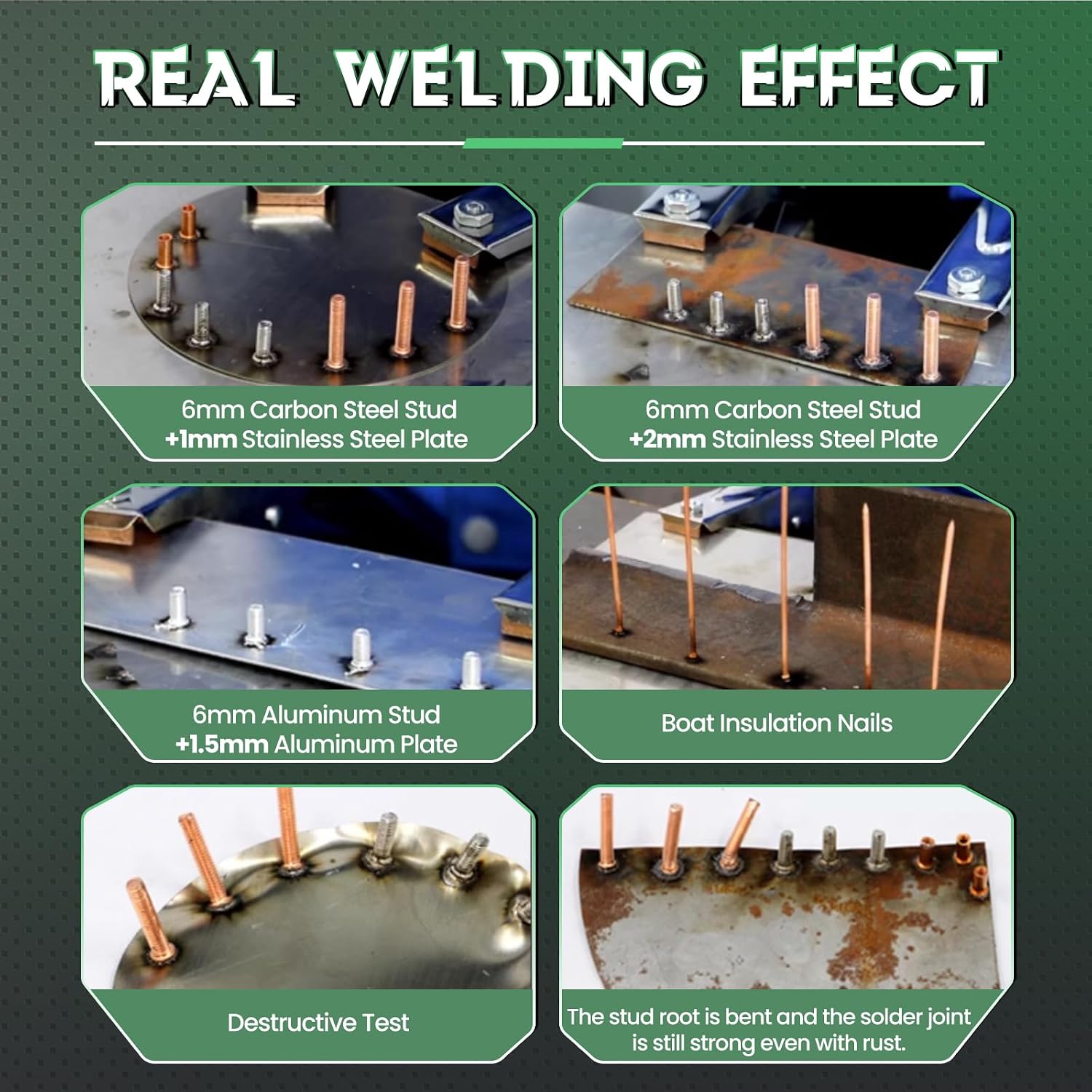

See the Weld Results on Actual Material
The supplied product test imagery shows the RSR-2500 being used with carbon-steel, stainless-steel and aluminum stud-to-workpiece combinations, along with insulation-pin and joint-strength demonstrations.
1 mm Stainless Steel Plate
2 mm Stainless Steel Plate
1.5 mm Aluminum Plate
See the machine, welding gun and stud-welding process in an operating demonstration.
These examples are reference results from the supplied product imagery. Actual weld appearance and strength depend on stud type, material compatibility, workpiece thickness, surface preparation, contact pressure and charging-voltage setting.

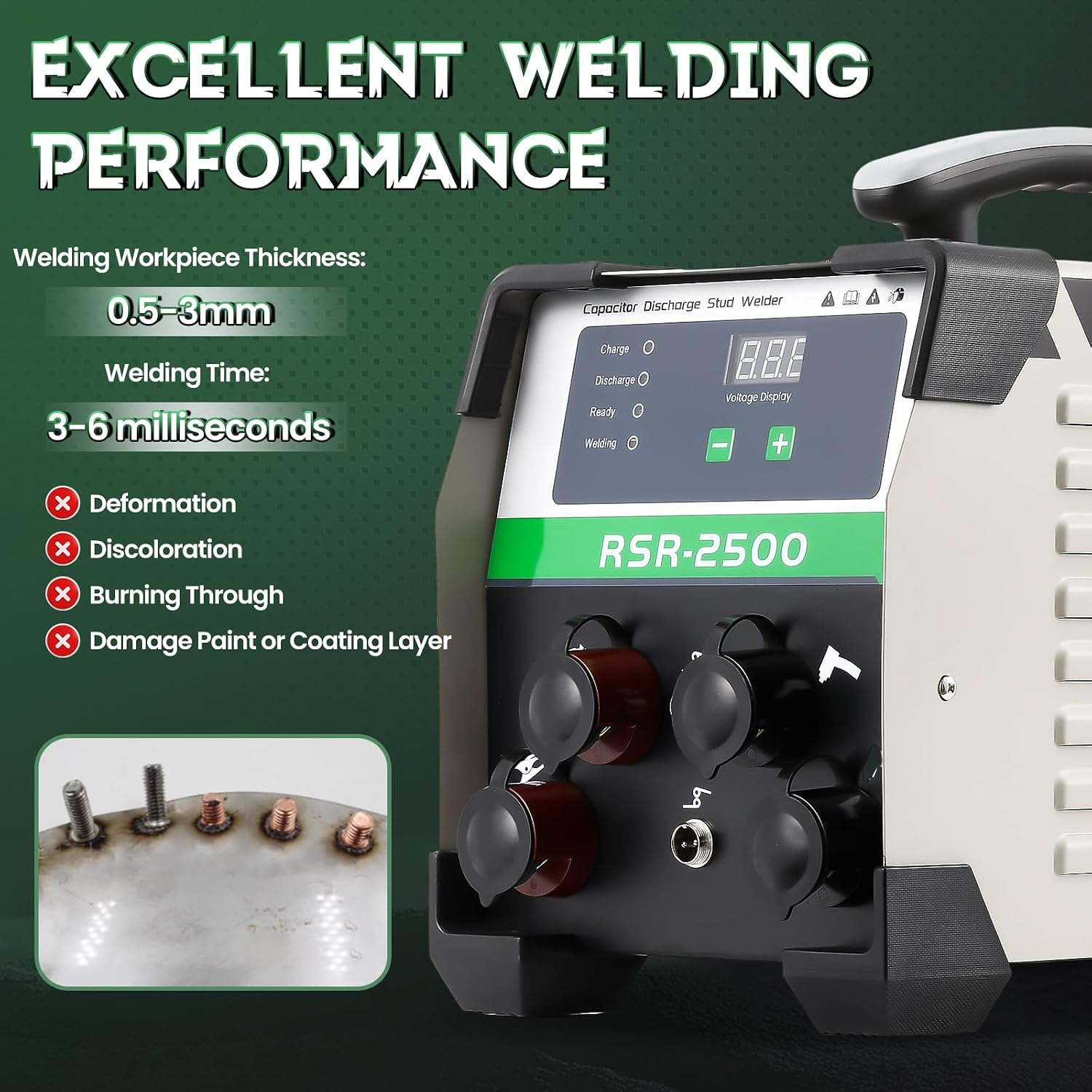

Clear Voltage Adjustment and Operating Status

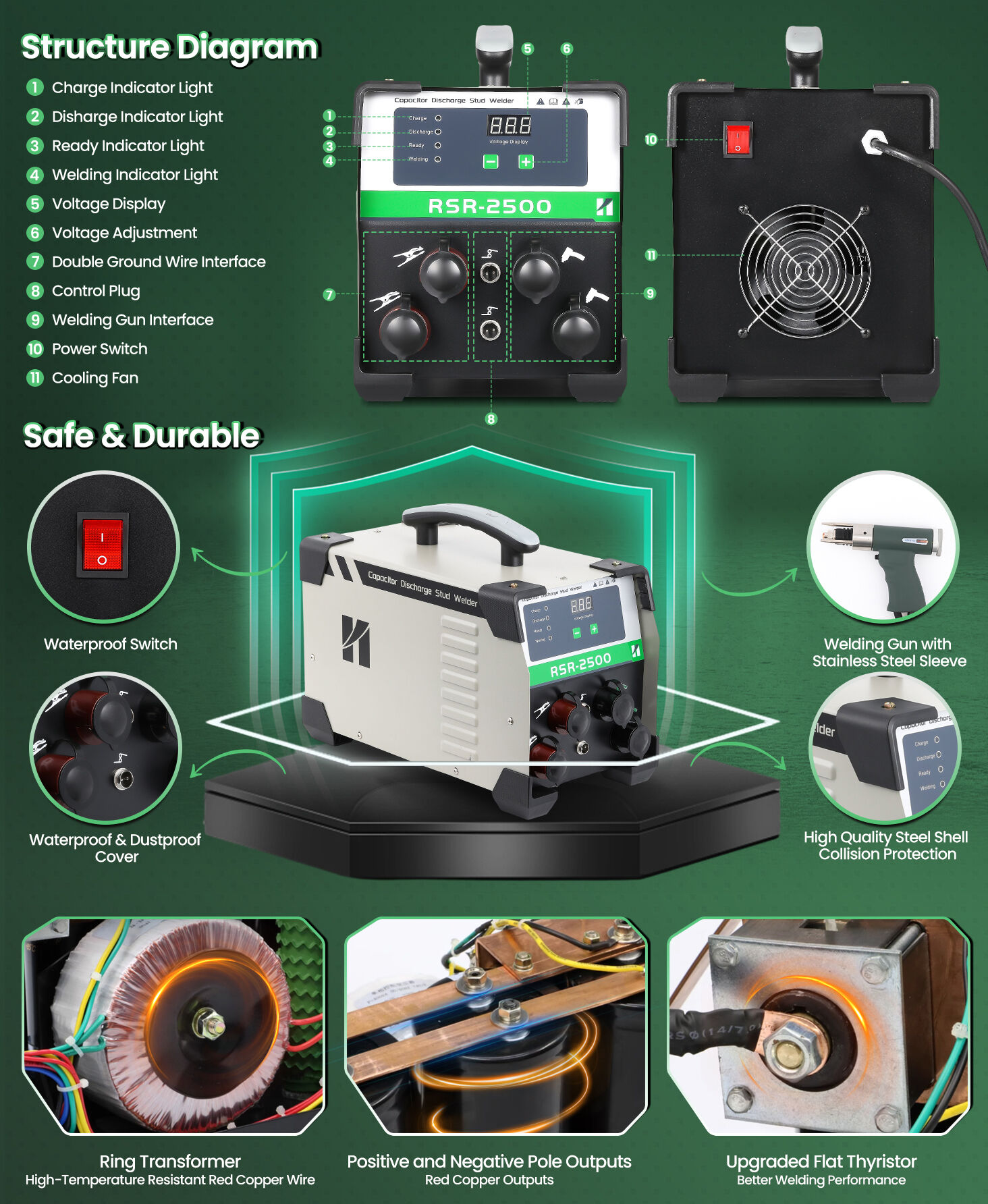

The front control panel keeps the main stud-welding settings and machine status easy to monitor. Charging voltage can be adjusted from 33V to 198V using the front-panel controls.
Digital Voltage Display
Provides a clear numerical reference for the selected charging-voltage setting.
33–198V Adjustment
Use the + and − controls to increase or decrease charging voltage.
Charge / Discharge
Dedicated lights provide feedback through the capacitor charging and discharge sequence.
Ready Indicator
Shows when the charging cycle is complete and the machine is ready for the next weld.
Welding Indicator
Provides operating feedback during the welding sequence.
5-Meter Welding Gun for More Flexible Positioning
Welding Gun Length
The RSR-2500 is supplied with a 5-meter welding gun, giving the operator more room to work around larger panels, equipment housings and fabrication areas without constantly repositioning the main machine.
Two front-panel interfaces support the supplied dual-ground configuration.
Two ground cables with clamps are supplied for workpiece connection.
Power and control connections are clearly separated on the front panel.
Attach the ground clamps firmly to clean, conductive metal. Poor grounding, paint, rust or contamination can contribute to unstable welding performance.
Built for Fast, Repetitive Stud Placement
Once the stud size, material combination and charging voltage are set correctly, the RSR-2500 allows the operator to repeat the same basic welding sequence across a workpiece.
Select the Stud & Collet
Choose the stud size and install the corresponding collet in the welding gun.
Set the Charging Voltage
Adjust the machine for the stud diameter, material combination and workpiece thickness.
Position & Weld
Position the stud at the required point and complete the short capacitor-discharge welding cycle.
Depending on stud diameter and working conditions.
The stated welding rate is a reference from the supplied product information, not a guaranteed production rate. Actual throughput varies by application and operator workflow.
A Practical Layout for Everyday Stud Welding
The RSR-2500 uses a steel enclosure with an accessible front-panel connection layout and rear forced-air cooling. The machine brings the welding-gun connection, control plug, dual ground interfaces and digital controls together in one operating area.
Rigid outer housing for normal workshop use.
Forced-air cooling helps move heat away from internal components.
Connector covers help protect front interfaces when not in use.
Top handle helps reposition the machine around the work area.
Operate the machine in a dry, protected environment. IP21S does not mean the equipment is waterproof or suitable for use in rain.

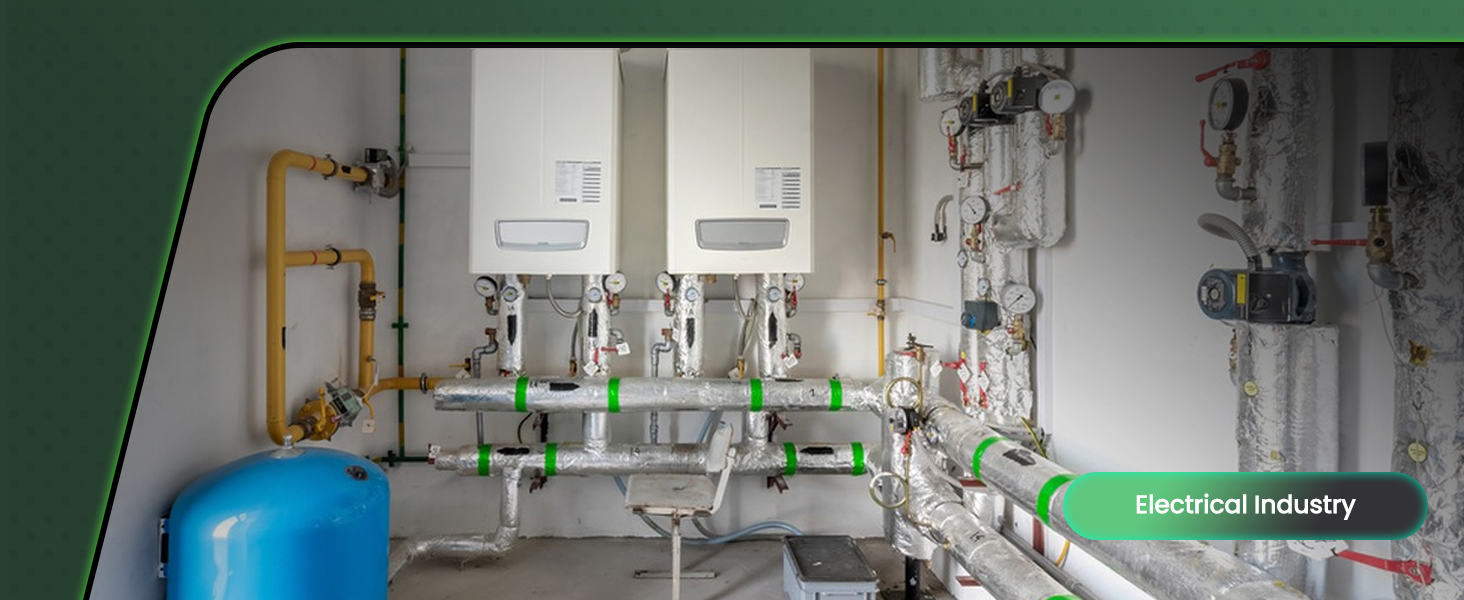

Stud Welding for Sheet Metal, Equipment & Insulation Work
Capacitor-discharge stud welding is used where threaded studs, fastening points or insulation pins need to be attached directly to relatively thin metal surfaces.
Automotive Fabrication
Electrical Enclosures
Insulation Fastening
Metal Vessels
Equipment Assembly
Complete M3–M10 Stud Welding Setup

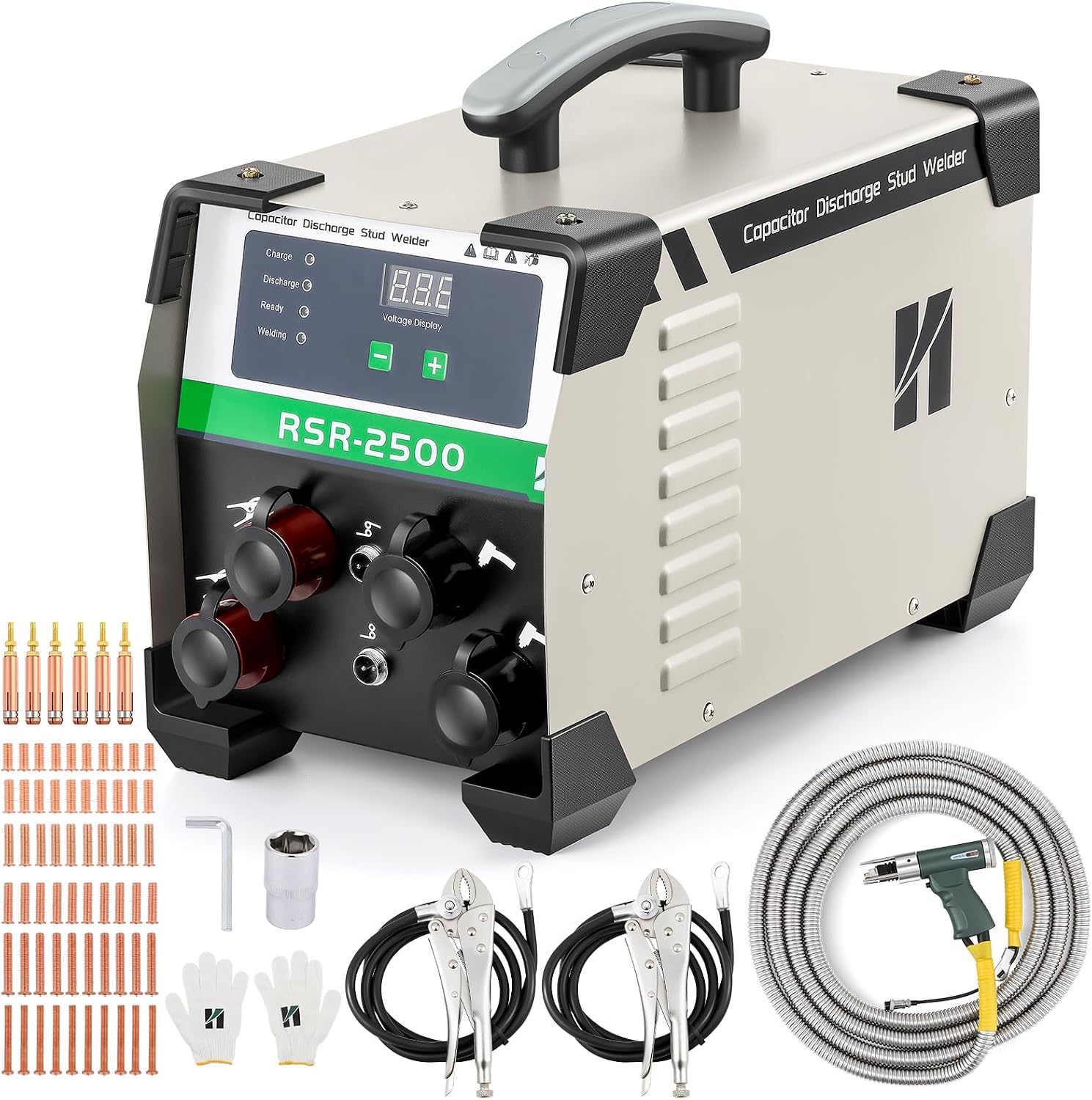

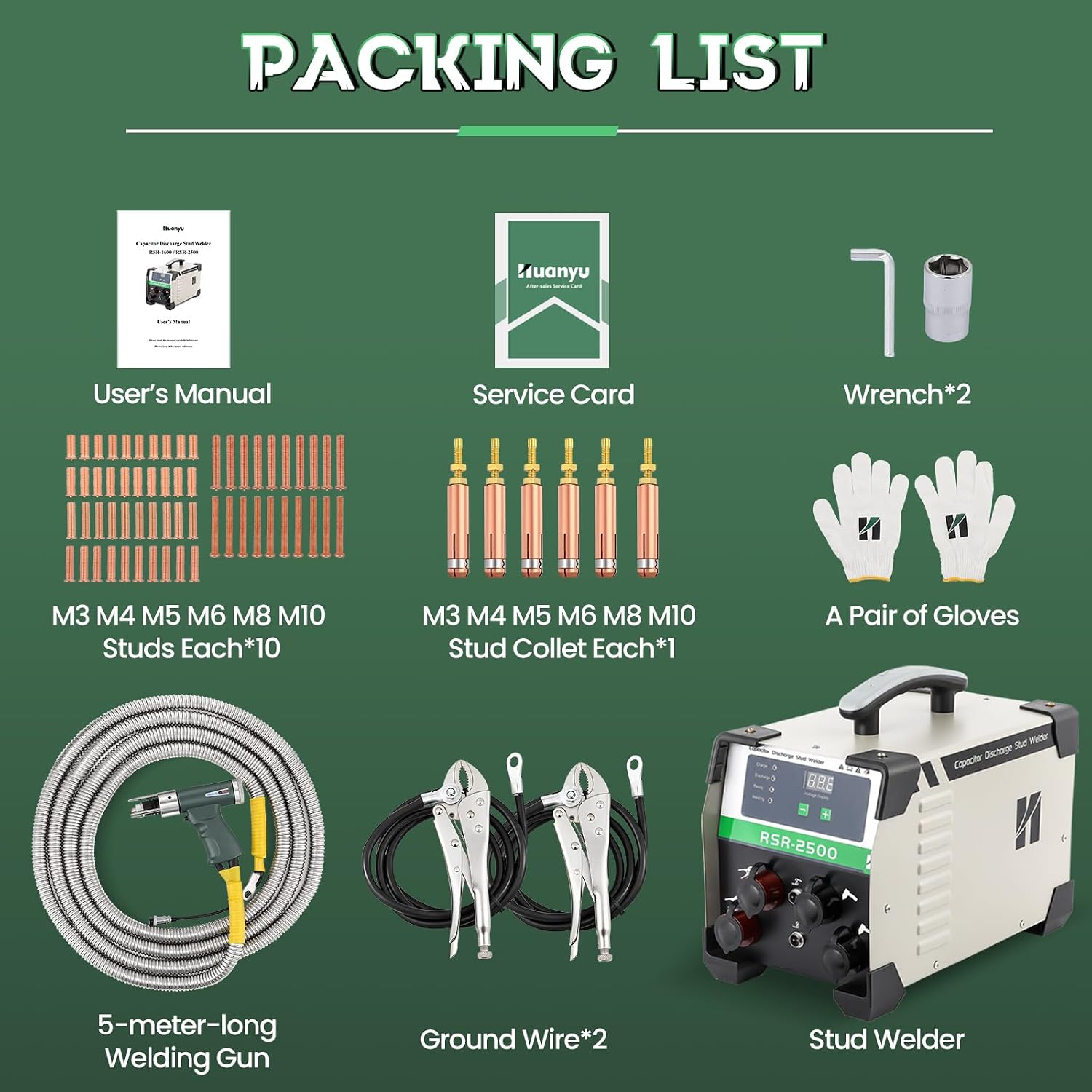

The current package includes the main welding machine, 5-meter welding gun, dual ground cables, stud collets and a starter selection of M3–M10 studs.
Machine & Cables
5 m Welding Gun ×1
Ground Cable / Clamp ×2
Included Studs
M5 ×10 · M6 ×10
M8 ×10 · M10 ×10
Collets & Accessories
Wrench ×2
Gloves ×1 Pair
Documentation
Package contents shown are based on the current supplied product imagery and may be updated by production batch.

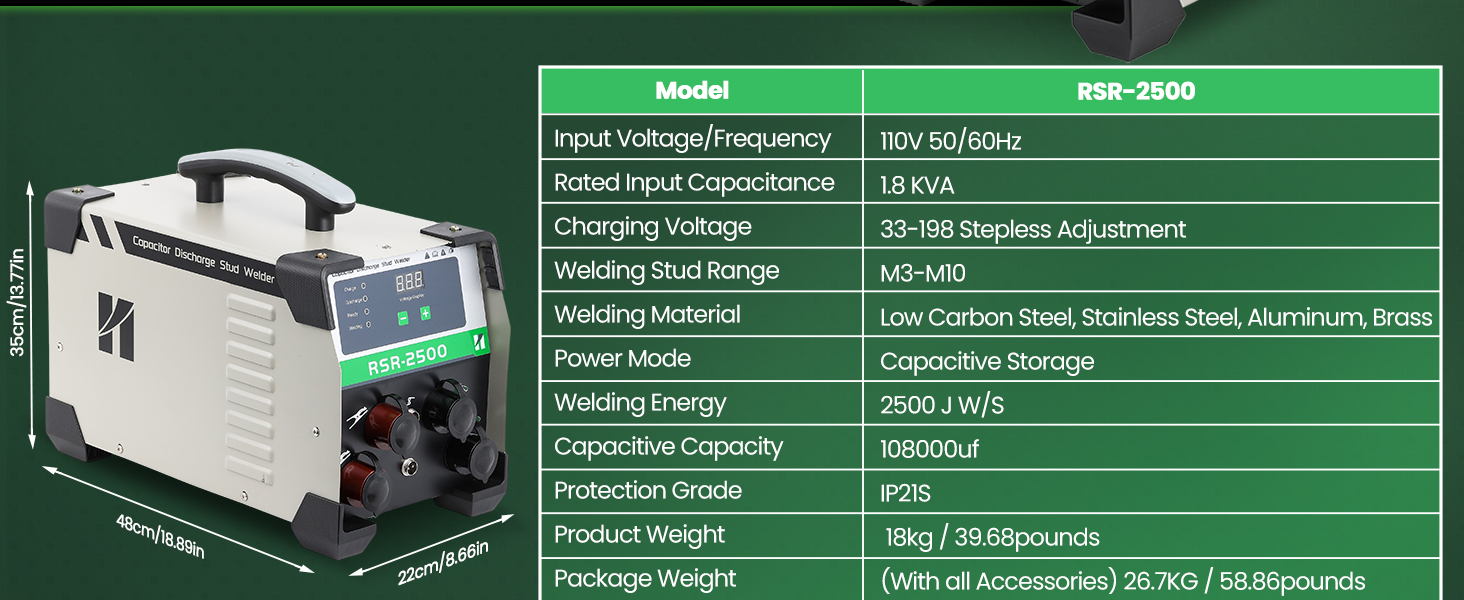

RSR-2500 Technical Specifications
The table below summarizes the operating information used for this product page based on the supplied listing and product graphics.
| Product Type | Capacitor Discharge Stud Welder |
| Model | RSR-2500 |
| Input Voltage | 110V AC |
| Frequency | 50/60Hz |
| Stud Welding Range | M3–M10 |
| Charging Voltage | 33–198V, Stepless Adjustable |
| Capacitor Capacity | 108,000 μF |
| Welding Cycle | Approx. 3–6 ms |
| Workpiece Thickness | Approx. 0.5–3 mm |
| Reference Welding Rate | Approx. 15–50 Welds/Min |
| Welding Gun Length | 5 m / 16.4 ft |
| Ground Connections | Dual |
| Protection Grade | IP21S |
| Cooling | Rear Forced-Air Fan |
| Machine Dimensions | Approx. 48 × 22 × 35 cm / 18.9 × 8.7 × 13.8 in |
| Power Mode | Capacitor Energy Storage |
Original product specification graphic shown for reference. The HTML table is the primary specification reference for this product page.
Set Up the Machine for the Stud, Material and Workpiece
Reliable stud welding depends on more than the machine itself. Stud size, collet selection, material compatibility, surface condition, workpiece thickness, grounding and charging voltage all affect the final joint.
Need Help With Setup or Product Selection?
Contact CARROT TOOL with your application details so our team can better understand the setup.
Stud size and material
Workpiece material
Workpiece thickness
Charging-voltage setting
Photos or video where useful
